ULTIMATE S4000-Series

The ULTIMATE S4000 Series printers are the “entry-level” version of the highly acclaimed ULTIMATE 3000XT Series printers.  They share the same electronics and connectivity as the “XT”s, but are targeted for applications that need a more cost effective printer.



ULT-S4200

ULT-S4300

ULT-S4600

Print Technology

Direct Thermal/Thermal Transfer

Direct Thermal/Thermal Transfer

Direct Thermal/Thermal Transfer

Print Resolution

203 dpi

300 dpi

600 dpi

Print Speed

8”/sec.

8”/sec.

4”/sec.

Media Width

4.56”

4.56”

4.56”

Maximum Print Width

4.09”

4.1”

4.1”

Maximum Label Roll Diameter

8”

8”

8”

Core Diameter

1.5” - 3”

1.5” - 3”

1.5” - 3”

Processor & Speed

32-Bit, 266 MHz

32-Bit, 266 MHz

32-Bit, 266 MHz

RAM

64 MB

64 MB

64 MB

ROM (Flash)

8 MB

8 MB

8 MB

Agency Listings

CE, FCC Class A

CE, FCC Class A

CE, FCC Class A

Flash Card Slot

Yes

Yes

Yes

Real-time Clock

Yes

Yes

Yes

LCD Display (Graphic, 4x20)

Yes

Yes

Yes

Interface (Standard)

USB 2.0, RS-232, Ethernet 10/100

USB 2.0, RS-232, Ethernet 10/100

USB 2.0, RS-232, Ethernet 10/100

Interface (Optional)

Parallel, Wireless (802.11b/g, RS-422, RS-485, Twinax/Coax converter

Parallel, Wireless (802.11b/g, RS-422, RS-485, Twinax/Coax converter

Parallel, Wireless (802.11b/g, RS-422, RS-485, Twinax/Coax converter

USB Master Port for Keyboard and Barcode Scanner Connection

Yes, 2 Ports

Yes, 2 Ports

Yes, 2 Ports

RFID (Optional)

Yes, HF or UHF

Yes, HF or UHF

No

Power Supply

100V-240V @ 50Hz/60Hz, PFC

100V-240V @ 50Hz/60Hz, PFC

100V-240V @ 50Hz/60Hz, PFC

[Home] [Printers] [Labeling Software] [Labels & Ribbons] [Print & Apply Systems] [Other Products] [Support] [About Us]

© Copyright 2009 Industrial Labeling Systems, Corp.  All rights reserved.

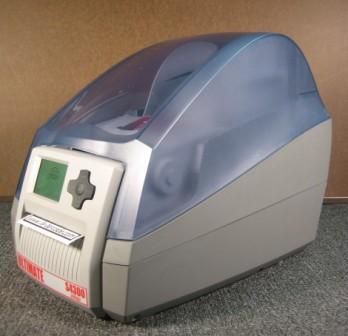

S4000-Profile_Shot
S4000 Series Printer 019A

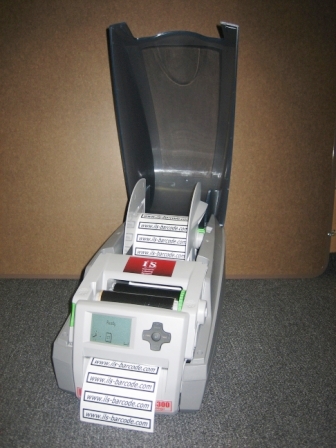

S4000 Series Printer Open Cover
